How do I view and edit my schedule using the Arize Smart Thermostat? 

How Can We Help?

Categories

How do I view and edit my schedule using the Arize Smart Thermostat? 

You are here:

This guide will walk you through the steps to view and edit your thermostat schedule using your Arize Thermostat.  

To turn your thermostat schedule on using your Arize Thermostat device:

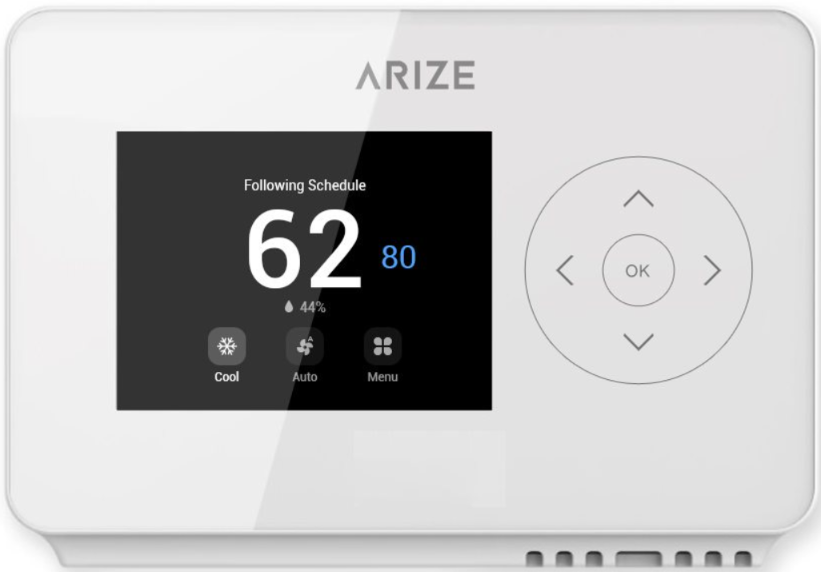

  1. Use the left < and right > arrows to navigate to the Menu icon, and press OK 
  2. Press OK while the Schedule icon is highlighted
  3. Press OK while the Turn On Schedule button is highlighted

Note: There will be a default schedule in place that you can easily adjust to match your personal and temperature preferences. 

To view your thermostat schedule:  

  1. Use the left < and right > arrows to navigate to the Menu icon, and press OK
  2. Press OK while the Schedule icon is highlighted 
  3. Navigate to the desired day of the week you would like to view, and press OK 
  4. You will see the desired day’s schedule, including a list of time periods and temperature settings 

To edit your thermostat schedule: 

  1. Use the left < and right > arrows to navigate to the Menu icon, and press OK 
  2. Press OK when the Schedule icon is highlighted
  3. Use the up ^ and down v arrows to navigate to the desired day of the week you would like to view, and press OK 
  4. Use the up ^ and down v arrows to navigate to the time period that you want to edit, and press OK 
  5. While on the time period overview screen: 
    1. Highlight Mode and press OK to edit the thermostat mode for that time period 
    2. Highlight Temperature and press OK to edit the set temperature(s) for that time period 
    3. Highlight Start Time and press OK to adjust when that time period will begin 

Note: If you adjust a start time to be the same as another time period, the new time period will replace the previously scheduled time period. 

To copy your schedule: 

  1. Use the left < and right > arrows to navigate to the Menu icon, and press OK
  2. Press OK while the Schedule icon is highlighted
  3. If the thermostat schedule is currently turned on, press OK on the desired day’s schedule you wish to copy  
  4. Highlight Copy Schedule to copy the selected day’s schedule to other days of the week 
  5. Press OK to select which days of the week will copy the schedule 
    • Note: You must select at least one day to copy the schedule over to.  
  6. After selecting which days of the week to copy the schedule over to, press OK on Copy Schedule 
  7. Press OK on Copy Schedule to copy over the schedule, or press Cancel to return to the weekday selection screen 

Note: Copying a schedule will replace any existing schedules for all selected days.  

To turn your thermostat schedule off: 

  1. Use the left < and right > arrows to navigate to the Menu icon, and press OK 
  2. Press OK when the Schedule icon is highlighted 
  3. Navigate to the bottom of the weekday screen, and press OK while Turn Off Schedule is highlighted 
  4. Press OK to turn off the schedule, or press Cancel to return to the weekday selection screen 
